Random semicircles covering a circle

We talk about semicircles, but it's easier to visualize disk and sectors that cover it.

Uncovered examples

Covered examples

Probability of being not-covered after n throws

If we throw n random semicircles, what is the probability that the circle is covered?

Consider any point \(p\) on the circle. When we throw a random semicircle, \(p\) is not covered with probability \(\frac{1}{2}\). After \(n\) throws, the point is not covered with probability \(\frac{1}{2^n}\). But \(n\) semicircles split the circle into \(2n\) regions. If any point of the region is not covered, the the whole region is not covered. Hence, the probability that the circle is not completely covered is \(2n \frac{1}{2^n} = \frac{n}{2^{n-1}}\). This formula works for values \(n \ge 1\)

let f = (n) => n / Math.pow(2, n - 1);
function approxUncovered(n, Q) {
    let uncovered = 0;
    for (let i = 0; i < Q; i++) {
        fullDiskCovered(generateNAngles(n)) || uncovered++;
    }
    return uncovered / Q;
}

Expected number of throws to cover the circle

If \(f(n)\) is a probability of being not fully covered after \(n\) throws, then probability of being covered is \(1-f(n)\). However, this means that the circle could have been covered after any of the throws. Instead, we are interested in knowing the probability of the circle being covered after exactly \(n\) throws. To find this, we observe that \(g(n)=f(n-1)-f(n)\), i.e. it's precisely the drop of the probability of remaining uncovered. Then \( \displaystyle E[X] = \sum_{X=0}^{\infty} X*g(X) = \sum_{X=0}^{\infty} X*(f(X-1)-f(X))\).

So have \(g(n) = f(n-1) - f(n) = \frac{n-1}{2^(n-2)} - \frac{n}{2^n} = \frac{n-2}{2^n}\). This formula works for \( n \ge 2\). In addition we define \(g(0)=0, g(1)=0\) by common sense (impossible to cover the circle with 0 or 1 semicircles).

As a sanity check, \( \displaystyle \sum_{n=0}^{\infty}g(n) = 1 \)

Finally, the expected number of throws is then \( \displaystyle E[X] = \sum_{X=0}^{\infty} X*g(X) = \sum_{X=3}^{\infty} \frac{X(X-2)}{2^{X-1}} = 5\)

Markov chain

We can model the process via Markov chain. We have a state \(\mu(\alpha)\) for \( \forall\, \alpha \in [0, 2\pi] \).

From each state \(\mu(\alpha)\) we have 3 possibilities:

• Stay in that state with probability \(s(\alpha) = \frac{\pi-\alpha}{2\pi}\)
• Go to 0 with probability \(z(\alpha) = \frac{\pi-\alpha}{2\pi}\)
• Go to lower angle \(\beta\) with pdf \( \frac{2\alpha}{2\pi}\frac{1}{\alpha}=\frac{1}{\pi} \) (note: doesn't depend on \(\beta\)!)

There are some special states:

• \(\mu(2\pi)\) - we throw a semicircle and go strictly to \(\mu(\pi)\). It's impossible to stay at \(2\pi\) or go to 0.
• \(\mu(\theta) \forall \theta \in (\pi, 2\pi)\) - unreachable states.

Finally we can write out a recurrent equation for the expected number of steps:

• \( \displaystyle \phi(\alpha) = 1 + s(\alpha)\phi(\alpha) + z(\alpha)\phi(0) + \int_0^\alpha p(\alpha, \beta)\phi(\beta)d\beta, \alpha \ge \pi\)
• \( \displaystyle \phi(\alpha) = 1 + s(\alpha)\phi(\alpha) + \frac{1}{\pi}\int_0^\alpha \phi(\beta)d\beta, \alpha \ge \pi \)

TODO: solve analytically

function markovChainIntegral() {
    const N = 10000;
    const alphas = Array.from({ length: N }, (_, i) => i * Math.PI / (N - 1));
    const da = alphas[1] - alphas[0];
    const h = new Array(N).fill(0);

    function s(alpha) {
        return (Math.PI - alpha) / (2 * Math.PI);
    }

    for (let i = 0; i < N; i++) {
        const alpha = alphas[i];
        if (i === 0) {
            h[i] = 1 / (1 - s(alpha));
        } else {
            // Trapezoidal approximation of integral
            let integral = 0;
            for (let j = 0; j < i; j++) {
                integral += h[j];
            }
            integral *= da;

            h[i] = (1 + (1 / Math.PI) * integral) / (1 - s(alpha));
        }
    }

    // h[N-1] is h(pi).
    return 1 + h[N - 1];
}

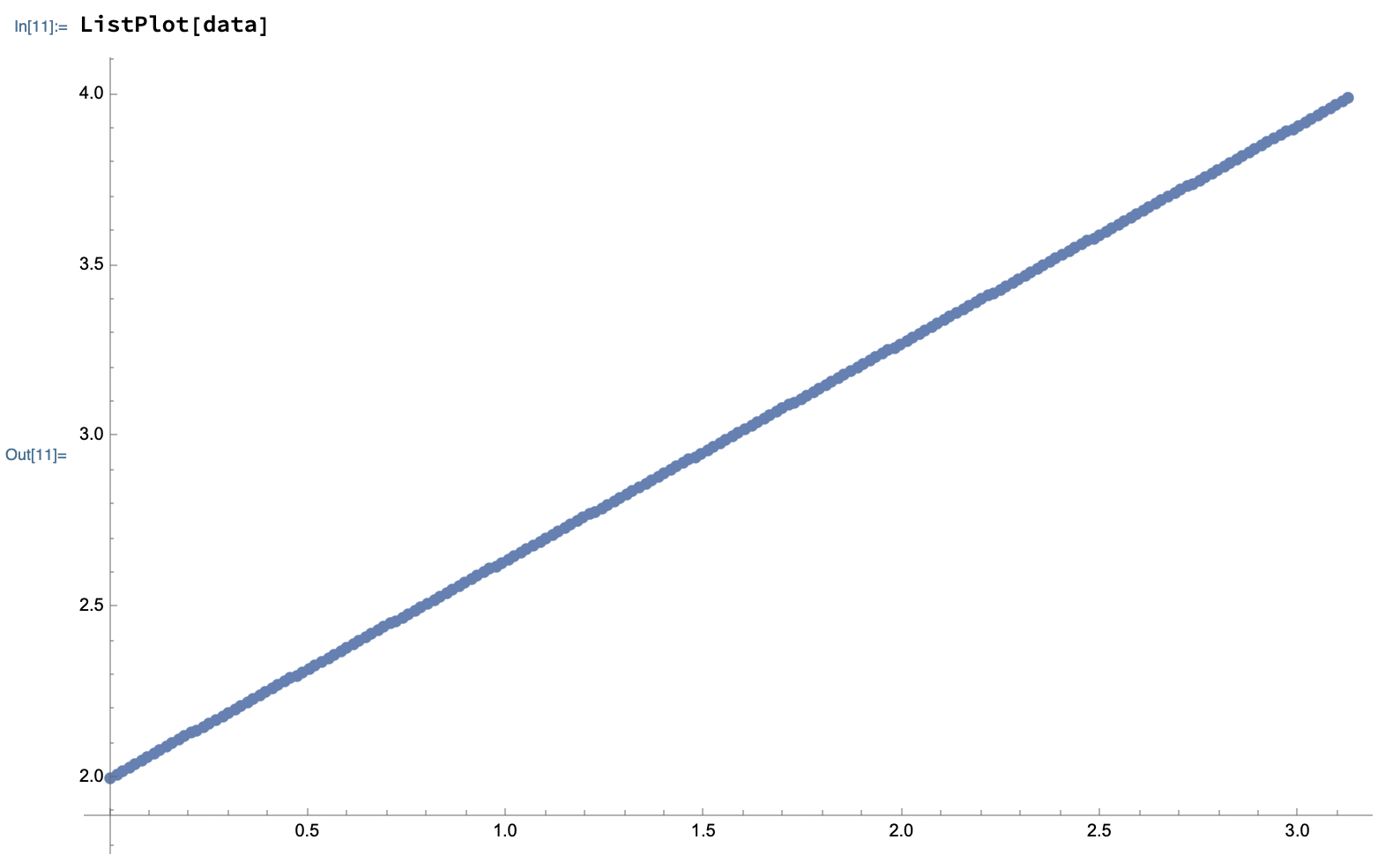

The solution is then given by markovChainIntegral() + 1:
